An Adaptive Time-Step Optimization Method for 2D HEC-RAS Simulations

Written by Jaison Renkenberger | September 30, 2020


In this post, Jaison provides a very thorough and useful explanation of the benefits of using time-series of divisors for your computation interval when doing 2D modeling.  Thanks Jaison for your contribution to the HEC-RAS community!
Engineers everywhere, my self-included, are both excited and wary of the challenges of moving 1D RAS workflows to 2D. There are many items that need to be thought out and standards still need to be made. It seems for any of that to be worth doing, one big hurdle needs to become much more attainable. Of course, the hurdle I am speaking to is the seemingly immense amount of time it takes to run a 2D model of any decent size. This is further complicated by the wide range of factors that influence run time. This is a planning nightmare.

Fortunately, hardware aside, there are some advantages that are not well known built into HEC-RAS that we can use to significantly reduce run times without needing to compromise on model stability. We can also get the same consistent and reliable outputs we all count on. The future of the discipline is moving closer and closer to the cloud as technology and rapid software development for information-technology operations (DevOps) cut development lifecycles for new engineering tools ever shorter. Many engineering firms are already finding ways to bring engineering workloads to the cloud through virtualization. To save money and leverage important resources our creative solutions need to consider computational efficiency and performance as well as tie those metrics to estimates of cost and public good.

This article demonstrates the use of adaptive time steps in HEC-RAS and presents an easy-to-use method for determining time step divisors for highly dynamic flood events.    As an example, I recently finished a single mesh 2D HEC-RAS model for floodplain mapping.  It contained 868,000 cells and simulates a 24-hour rain-on-grid event.  The method I will explain in this article reduced the run time from 49 hours to 4 hours, a reduction of 91%!  The table and plot below summarize the results.



Statistics Original Run Stats Modified Run Stats Delta Delta by Percent
Computation Time Total 49:31:59 (h:m:s) 04:17:35 (h:m:s) – 45 hours – 91%
Vol Accounting Error 28.43 (acre-ft) 44.96 (acre-ft) + 16.5 (acre-ft) +58%
Vol Accounting Error Percentage 0.054% 0.080% + 0.026% +48%
Example Azure Cloud Cost $ 17.89* $ 1.54* $ 16.35 – 91%

*Note: Azure instance was assumed to be containerized (usually docker) set with 6 GB of RAM and 4 vCPUs (would not increase further in online calculator). Costs may not represent reality, but ratios may be informative. Also, containerized storage was also not considered.

In the figure above, notice how closely the two hydrographs match versus the amount of computation time needed to generate the output hydrograph. Level of definition, of course, should be considered with your project type, public safety and your client.

In the case above I did not have any observed data to calibrate to, so I cannot make any determination of which hydrograph is more correct. The difference is negligible anyway.

What is the Method and Why Does it Work?

If you were at any point concerned with model stability, then you are familiar with the Courant condition. You might also see it as the Courant–Friedrichs–Lewy Condition (CFL) if you google it online. I won’t go into it here, since there are already many resources online, but I will save you some time by saying that RAS is not like most other Hydraulic models, so what you find online may not be directly applicable. The key element is that RAS uses an implicit solving scheme rather than an explicit scheme. Generally, this means that a higher courant number can be used rather safely and still have stable outputs. In fact, this is by design. The excerpt below is from the RAS Hydraulic Reference Manual.



Implicit Finite Difference Scheme

“The most successful and accepted procedure for solving the one-dimensional unsteady flow equations is the four-point implicit scheme… For a reach of river, a system of simultaneous equations results. The simultaneous solution is an important aspect of this scheme because it allows information from the entire reach to influence the solution at any one point. Consequently, the time step can be significantly larger than with the explicit numerical schemes.”

From: CPD-69 Ch 2: 2-29-30

While the excerpt above is from the 1D Unsteady section, RAS’s 2D equations and methods are built atop of them. Let’s break this excerpt down because it says quite a bit.

  • “Four-point implicit scheme” – We are not using an explicit solver.
  • “For a reach of river, a system of simultaneous equations results” – They are referring to a solution method optimized for sparse matrices (matrices with many zero values or empty cells for 2D). RAS can efficiently handle grids where many cells may never get wet.
  • “Information from the entire reach to influence the solution at any one point” – This means the whole flood wave is being sampled every computation interval. As a result, we can use much higher timesteps than with an explicit solver. This is very curious….

When choosing a timestep the key, traditionally, is to achieve a numerically stable model.  But it is also equally important to make sure that the timestep is small enough that the chances of missing the peak of the wave at a sampling point (Cell face or XS) is small. RAS, at every computation interval, looks at the whole grid (sparse matrix of linear equations) and solves for what it expects to see (a dynamic wave). You have a lot of opportunities to characterize the flood wave with your chosen computation interval. But, does the value of that opportunity change throughout the simulation? If so, how can we take advantage of it?

To illustrate that last point further, consider a different but very related example; converting analog music to digital. Look at the graphic below. A computer samples the wave at a regular interval. These would be the vertical periodic red arrows. You might intuitively know that many arrows corresponding to a sampling point, or time the wave was measured, would result in more dots to interpolate between. Less arrows results in less points and the wave loses definition.

Can we have too many arrows? More does mean better quality, but that higher quality can become meaningless if you are sampling the wave for qualities greater than what any human ear can discern. In the figure below I highlighted a couple places where we might be able to take advantage of a dynamic sampling method. Dynamic sampling would basically optimize arrow placement to a wave shape objective function. You might equate this to running a RAS model at a constant 30 second interval vs advanced time step control which would try to use the CFL condition at each time-step to adjust it for you automatically. The dynamic sampling tries to reduce the overall number of samples taken by sampling more where you need it and less where you don’t.

Notice that sampling does not need to be at a regular interval to accurately reproduce the wave later. In RAS, we just need to know when in your simulation you will need more definition and when it is less important. Just using a small Courant value may ensure that your simulation does not accumulate errors but will ultimately serve no purpose but to test your patience.

Just to check in, you are probably now more fully convinced of something you already know. Don’t use a fixed time step, use the automatic one based on the Courant condition. Unfortunately, these settings are not usually set correctly and frequent spikes in the calculated Courant condition (C) value on the grid can slow the whole model down for periods that are less important in time. I think the most effective method for setting time step is based on time series of devisors.

As you will see, your intuition of the models needs can be much sharper than a simple function that samples the whole grid indiscriminately at each time step. Until RAS increases the sophistication of the Courant based time step program, you can easily do a better job being the dynamic controller of your model for simple cases.

Optimizing Timestep: A Simple Graphical Method Based on “Hydraulically Important Periods”

To optimize our models, we will need two things. 1) A way to easily calculate and apply a C value and, 2) a method for predicting when we will need densely or sparsely sampled points. To do this, we will break up the simulation run into Hydraulically Important Periods or HIPs. This will help us predict what is happening between boundary conditions. Fortunately, guidance given in the RAS manuals helps solve the first problem. See the figure to the right (From: HEC-RAS 2D Modeling User’s Manual: page 4-5).

To use these equations, you need to make assumptions about V or velocity of the flood wave (wave celerity also refers to the speed of wave propagation). This will need fine tuning in the future but a great place to start for flatter watersheds is 5 ft/s. Steep watersheds or breach events will need something like 10 ft/s. Please note, I haven’t tested higher velocities as much as lower ones. These are rough estimates that have worked well with flood mapping exercises.

For applying the desired C value at various HIPs, we will use the advanced time stepping window. For the unsteady solver look for “Adjust Time Step on Time Series of Divisors” section. Don’t worry I will show you in more detail below. However, if you have any doubts about where we are in the process then see the hint that was left in the RAS documentation below.

The Time Step Divisor method for controlling the time step requires much more knowledge by the user about the events being modeled, the system being routed through, as well as knowledge of velocities, cross section spacing, and 2D cell sizes. However, if done correctly, this method can be a very powerful tool for decreasing model run times and improving accuracy.  From: HEC-RAS Supplemental to HEC-RAS 5.0 User’s Manual: Page 2-8.

For some of you your intuition might have noticed that velocity is not necessarily the same as celerity. You are correct. To remove any confusion going forward I want to highlight a couple important definitions to help keep everything in order.

  • “C” in HEC-RAS – Refers to the Courant condition also known as the Courant-Friedrichs-Lewy (CFL) condition. It is a stability criteria value that appears in many computation fluid dynamics models where numeric solutions to partial differential equations (PDEs) are used.
    • From the equations above you can see that it is a dimensionless number representing proportional relationships between time-step, velocity and grid cell size.
  • Celerity or phase velocity – Refers to velocity as applied to wave propagation. It is separate from particle velocity because a wave can travel at a different rate than a particle.
  • V or velocity – In HEC-RAS, velocity and celerity, or phase velocity, are used interchangeably as they refer to the speed of wave propagation. However, HEC-RAS uses a simplifying empirical solution set to model dynamic waves. While the reduction is powerful and computationally efficient, the result is that Velocity is a numeric approximation of celerity.
Simple Graphical Method for Identifying HIPs

There are a number of ways to improve this method, but it will only complicate the basic concepts which are already very powerful and produce impressive results. In the example below I am using an output hydrograph (since the model was given to me) but an input hydrograph or hyetograph, for rain on grid, could help you establish a reference and the basic parameters of the estimator model we are building. The goal is to separate the model simulation into Hydraulically Important Periods (HIPs). We are taking advantage of the expected temporal variability to discretize the simulation into time zones and dynamically sample our flood wave ourselves. What we are concerned with here are the periods in the simulation where the velocity of the flood wave is or is not changing rapidly as it moves downstream.

The example below comes from the Bald Eagle Creek Dam Break sample dataset included with RAS. Since it is a dam break simulation, we already know there will be a period where the dam fills, a breach event and propagation downstream followed by a gradual recession of floodwaters. In the example below I want to look for any information that I can use to determine these period windows during the simulation. These periods and their boundaries will be our three HIPs. Modeling other hydraulic conditions may result in a different number of HIPs. What you choose is dependent on model conditions but you should aim to separate your simulation into time zones where your model will need more sampling to accurately produce the predicted flood wave as it moves downstream.

I personally like to start with the most intense event and work out. In this data set a dam fills and then breaches at a certain water surface elevation. Since time is not given, we are left to choose some form of rough estimation.  There are a variety of ways to make estimates. The one below is perhaps a more elaborate example than necessary, but I wanted to highlight something interesting for this post. Below we are looking at a blue input hydrograph and two downstream output hydrographs from the 2D grid. I want to concentrate my computing power on the most dynamic parts of the event. Ideally, this will be from when the breach starts to about when floodwaters begin a gradual decent at the model boundary.

Looking at the downstream hydrographs we know that they are a reflection (along the y-axis) of the dynamic wave that the breach generated upstream. Fortunately, they are well defined due to a significant travel time. Choosing the downstream peak as a reference point, we can roughly rewind time at an estimated 10ft/s for 100,500ft (approximate distance between outlet and breach point) for a back calculation of roughly 3 hours. This can be estimated graphically as shown below. You can choose to carry out the calculations, but it is not necessary. This middle zone where the dam breaches and the primary flood wave moves downstream is where I will concentrate RAS’s computing power with a smaller time step.

Once the critical part of the simulation has been identified then we are looking for when to establish the boundaries for HIPs one and three. Boundaries of the primary event are clear and looking for inflection points can help for finding a good drawdown boundary. Just keep in mind that highly dynamic periods, where velocity is changing rapidly, will need more time-steps. Input hydrographs, precipitation, gauges, etc. give great clues but are all translated in time.

Sample Calculation Walkthrough: USACE Bald Eagle Dam Break Single 2D Area Dataset

This example is based on the Bald Eagle Cree Example Dam Break Study Dataset which is included with the installation of HEC-RAS. This example is meant only to illustrate methods proposed above.

Our goal will be to use the HIP model optimize time step to reduce overall run time without sacrificing model stability. Model stability will be characterized by the following criteria:

  1. Volume Accounting Error
    • Reported as a percentage and as a value in acre-ft
      • Note: Both computation log file and .pXX.HDF files report these. For HDF, see Results>Unsteady>Summary.
  2. Hydrograph Oscillation
    • Check boundary condition lines and any internal structures and connections
  3. Output Anomalies
    • Note: Velocity and Depth grids are usually the most informative



Below is a summary of the base run as provided by USACE on specific hardware

Default USACE Settings Base Run Statistics
Grid Cell Size

Cell Count

Simulation Time Window

250×250 ft

~19600

4 Days

Computation Task Time(hh:mm:ss) 4:10
Error

Percent Error

6.826 acre-ft

0.001791%

Hardware Summary 3.8 Ghz

10 Cores/20 HT Cores

M.2 Solid State Drive



Step 1: Identify Possible Characteristic Events

Our goal is to gain some insight as to what is happening, in time, between boundary conditions in order to better predict what our model needs computationally and when. Fortunately, we have the results from this run already. If that were not the case I would just estimate graphically as shown earlier or do a quicker rough run with a larger time step and larger grid cell size.

The dam break example is set to breach at a specific water surface elevation. Without running any plan initially, we would only have the green inflow hydrograph below to make our estimate. Having already run the default model to ensure it was working properly and looking at some of the outputs, I know that this is not enough.

Strategy: For complicated scenarios it may be beneficial to run the model with a larger grid size and timestep to get a better idea of what is happening along your study area. The default setting for this plan resulted in a run time of 4:10s. I think the value gained in a rough run is well worth it. Just make sure to stay within the recommended limits of the given equations so you don’t introduce other unknown factors. From personal experience I can say that if C is too low or much too high errors can quickly accumulate on the grid causing it to iterate on cells with too much error. This can easily get out of control and cause your simulation run time to take much longer. It helps sometimes to lower RASs iteration count to something like 5-10 to nudge RAS to go unstable and quit. If your model is frequently hitting 10 iterations on cells in your model it is best to stop and double check what is going on. You can use RASs restart options if you really need to save time.

With some iteration, I established the following HIP zones for my study area. Unfortunately, I didn’t think about the graphical method I showed earlier until after. It would have saved me a bit of time!

Step 2: estimate parameters to calculate timestep for each hip

The equation we are using is reproduced below (From: HEC-RAS 2D Modeling User’s Manual: page 4-5). With grid size already fixed at 250dxdy we need to estimate velocity. Along a normal reach I would simply use 5 ft/s as a starting point. However, the dam breach is likely to exceed that significantly. Drawing a profile line just downstream of the breach with max velocity layer turned on I can sample that surface with the line in RAS Mapper. The location of that line and the sampled velocity profile are below. You can see that I roughly choose 10 ft/s.

Choosing a good C value is much like you might already be used to. However, remember that RAS uses an implicit solver. I generally choose C values between 3-5 and only go lower when it is really needed. In a breach case we need to keep C a bit lower to maintain stability. A summary of the calculations is below.

 1.  Set Computation Interval to 10 min (Some multiplier > than HIP 1)

Note about choice of computation Interval: The computation interval you choose can limit the number of time divisors you can use in a HIP. To save someone a headache, just remember that larger computation intervals will allow for more fine tuning in your desired time step.



2.  Adjust Time Divisors (See below for an example)

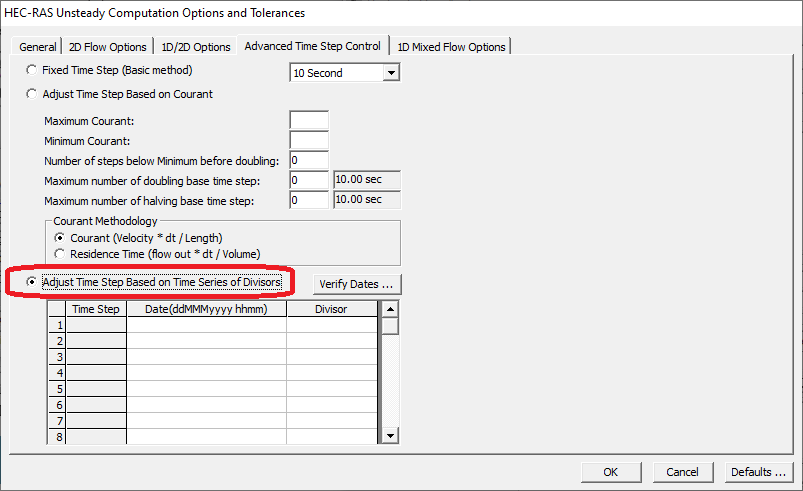

Access the table of time step divisors by clicking on the ellipses (…) next to the time step dropdown box in the figure above.  Note about divisors: The divisors can be a little confusing at first. The first line must be equal to the start time of your model. RAS continues with this first-time step until it meets another time step definition and so on. The last line will simply be used until the model simulation ends.  The divisor is then the number to divide the computation interval by to achieve the desired adjusted time step.  For example, for HIP 1, 10 minutes (600 seconds) divided by 4 equals 150 seconds.



3.  Compare Results

Model Output Summary
“Out of the Box” USACE Settings* Base Run Statistics Modified Time Step Delta
Computation Task Time(hh:mm:ss) 4:10 2:11     49%
Error

Percent Error

6.826 acre-ft

0.001791 %

3.098 acre-ft

0.000812 %

54.6%



The results show that using the HIP model for adaptive time stepping reduced both the computation time and volume accounting errors by around 50%. Below I show both results maps superimposed. We can see that the adaptive time stepping produced a slightly more conservative floodplain boundary near the spillway. We also notice some significant changes to the velocity contours downstream of the Dam as well. It is interesting to see what could be argued as more definition in the modified run than the original even though the smallest timestep in the modified run (40 seconds for HIP2) was still greater than the 30 seconds for the default run. I am interested to see what reasons the community can come up for why this is.

For the two hydrographs below, downstream boundary and breach, I just want to highlight how similar the solutions are to both models with and without adaptive time stepping. RAS was designed with some powerful tools allowing us to reduce runtimes while keeping results consistent.

The downstream boundary hydrographs are shown here for both simulations. If you are interested in peak discharge you can see here that the adaptive time stepping does not significantly impact model precision. Both hydrographs are within 50 cfs of the original run. The real danger of larger time steps is move evident in the breach hydrograph below. You can see that the peak of the original run lands between timesteps. Still, the difference in peaks is less than 3,000 cfs and amounts to a 0.004% reduction over the original run.

The final figure below shows a drawn polyline in RAS Mapper through the spillway to show differences in WSEL between the two runs. Some of the differences there might be alarming but keep in mind that this dataset was only intended to show what RAS CAN do rather than an example of how it should be done. The LiDAR there is particularly coarse among other things. Casual visual inspection of the rest of the model showed no discernable differences between inundation boundaries or velocity contours.

Summary

This method focused on classifying shallow wave propagation into Hydraulically Important Periods (HIPs) or changes in time. With modification this method can be adapted for other use cases. However, there is still changes in space to explore for further optimization. These will more heavily focus on RAS’s special grid features which are also rather unique to RAS.

Lastly, while it might be easy to intuitively modify the method for alternative use cases, please don’t forget the simplifying assumptions we are making. Understanding those will help anyone who wants to build on this.

Key Assumptions:

  • Average Velocity = 5 ft/s (or other value of your choice)
    • Average Velocity is sufficiently similar to wave celerity used to calculate the CFL condition.
  • Changes in velocity are highly correlated with time derivative of the hydrograph

Key Concepts

  • Dynamic Sampling can be more efficient than sampling on a regular interval
  • With experience, you’ll find that your intuition about your model’s needs can be a basis for using adaptive time step methods that can lead to much faster run-times over RAS’s built-in function. For now…
  • RAS uses an implicit solver which allows you to use much higher C values than similar software with an explicit solver.
